Product Overview
| Range of Product | Pressure |
|---|---|

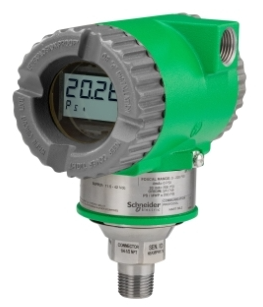

| Product or Component Type | Pressure transmitter |
| Type of Measurement | Absolute |
| Turndown | 400:1 |
|---|---|
| Response Time | 100 ms |
| Mounting Type | Direct connect Low profile Biplanar |
| Kit Composition | Mounting bracket |
| Display Type | LCD display |
| Measurement Accuracy | +/- 0.025 % of reading |
| Maximum Pressure | 6000 psi 414 bar |
| Drift | +/- 0.015 % of measuring range per year, for 10 years |
| Communication Protocol | FOUNDATION fieldbus HART |
| IP Degree of Protection | IP67 |
|---|---|
| NEMA Degree of Protection | NEMA 4X |
| Product Certifications | FM CSA ATEX IEC-Ex EAC INMETRO TÜV Rheinland (SIL3) NEPSI |
| Standards | NACE MR01-03 |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Warranty (in months) | 60 |
|---|
